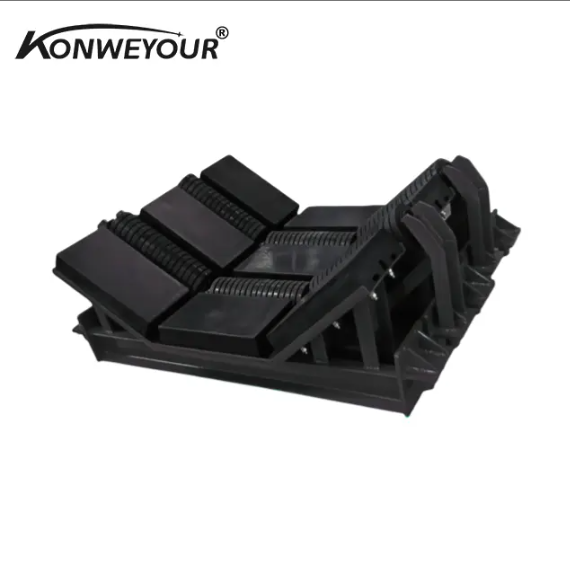

Product parameters
Slider Bar Material: UHMW-PE (Ultra-high molecular weight polyethylene)
Support Frame Material: Carbon Steel / Galvanized Steel / Stainless Steel (Optional)
Slider Thickness: 10mm / 15mm / 20mm (Customizable)
Slider Color: Green / Black / Blue (Customizable)
Number of Bars: 3 / 5 / 7 (Depends on bed width)
Adjustable Angle: 0°~20°
Adjustable Height: Customized as per conveyor design
Length Range: 500mm – 2500mm
Width Range: 500mm – 1600mm
Belt Width Options: 500mm / 650mm / 800mm / 1000mm / 1200mm / 1400mm
Operating Temperature: -40℃ ~ +80℃
Applications: Mining, Coal, Power Plants, Cement Plants, Heavy-Duty Impact Zones
Product Advantages
Excellent Wear Resistance
UHMW-PE bars offer superior wear resistance, effectively protecting the conveyor belt and extending service life.
Impact Absorption
The design absorbs impact from falling materials, preventing belt tears and reducing maintenance costs.
Adjustable Structure
The support height and angle can be easily adjusted to suit various applications and installation environments.
Self-Lubricating & Low Friction
The UHMW-PE material provides low friction and self-lubrication to ensure smooth material flow.
Easy Installation and Maintenance
Modular design simplifies installation and allows for quick replacement of worn parts.
Corrosion Resistance
Performs well in harsh environments such as mining, cement plants, and other heavy-duty operations.
Product Features
High wear resistance
Using ultra-high molecular weight polyethylene (UHMW-PE) slide plate, it has extremely high wear resistance, effectively prolongs service life and reduces maintenance frequency.
Shock-absorbing protection design
The unique buffer bed structure can effectively absorb the impact of materials and protect the conveyor belt from being cut or worn.
Adjustable structure
The height and angle of the support frame can be adjusted according to the actual needs of the conveying system to adapt to different conveying environments.
Self-lubricating and low friction
UHMW-PE material has good self-lubricating properties, reduces the friction resistance between materials and buffer beds, and improves conveying efficiency.
Easy to install and maintain
Modular design, convenient and quick installation and replacement, reducing maintenance costs.
Strong corrosion resistance
Suitable for humid, acidic, alkaline or dusty environments to ensure long-term stable operation.
